SWZ1000 CNC H-shaped steel three-dimensional drilling machine

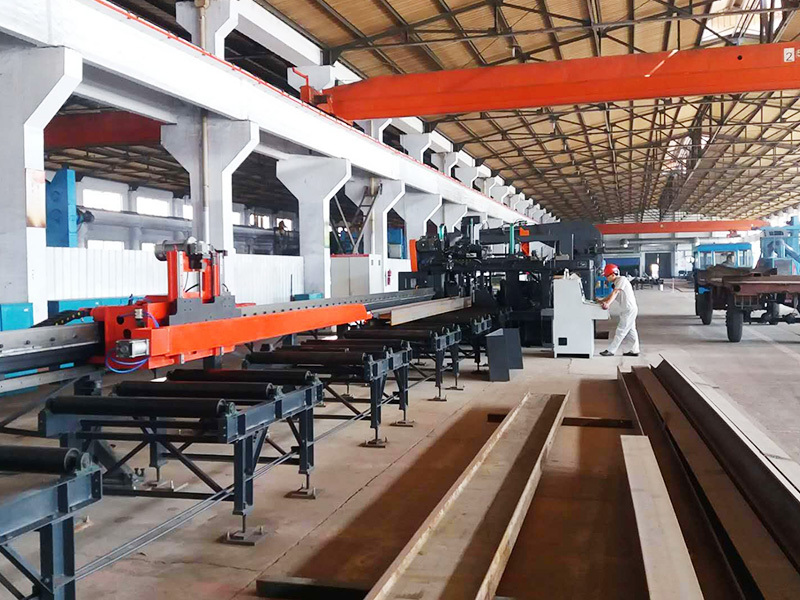

The SWZ1000 CNC three-dimensional drill is mainly composed of a host, a three-dimensional drill feeding mechanism, a three-dimensional drill discharge channel, a cooling system, a hydraulic system, a pneumatic system, a lubrication system, an electrical system, and a scrap car. The machine tool adopts a fixed bed structure and a movable workpiece structure. The three-dimensional drill of this structure is suitable for the processing of medium and small steel and is convenient for automatic production.

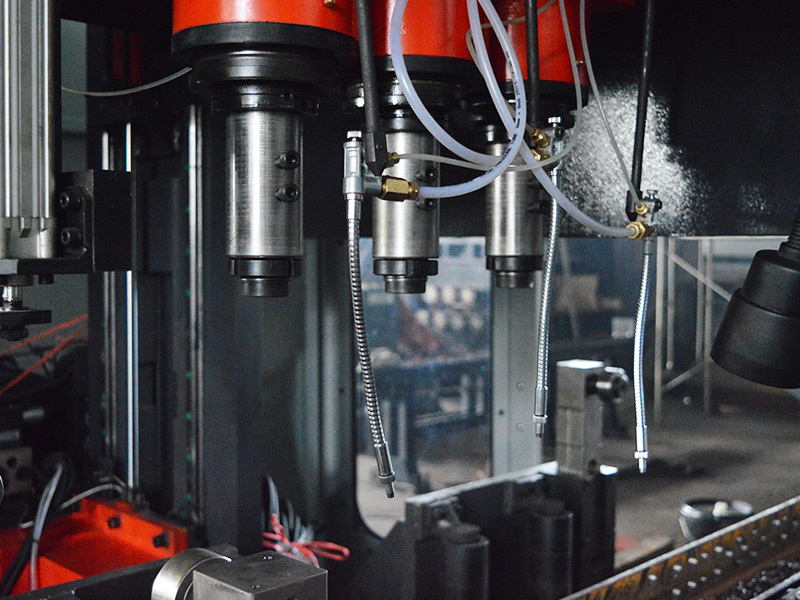

The SWZ1000 three-dimensional drilling host is mainly composed of beams, left and right columns, bases, sliding tables, drilling headstocks, upper pressure devices, side pressure devices, and material thickness and width detection devices. The machine has 3 drilling headstocks, that is, two side and upper unit drilling headstocks for horizontal and vertical drilling. Each drilling headstock can operate independently, and can complete drilling operations at the same time, which greatly improves efficiency. Each drilling headstock has 3 spindles with hydraulic automatic control stroke, which can install 3 kinds of drill bits, and can automatically process 3 kinds of different apertures when the workpiece is clamped once. When the spindle feeds, it can automatically carry out the conversion of fast forward-work forward-fast backward. The spindle speed of each drilling headstock is steplessly adjusted by the frequency converter, and the feed speed is steplessly adjusted by the speed control valve.
