SWZ500 CNC H-shaped steel three-dimensional drilling machine

Розничная цена
0.0
Рыночная цена
0.0
Количество просмотров :
1000
Товарный код
Количество
-
+
Наличие на складе :
0
Описание продукта
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

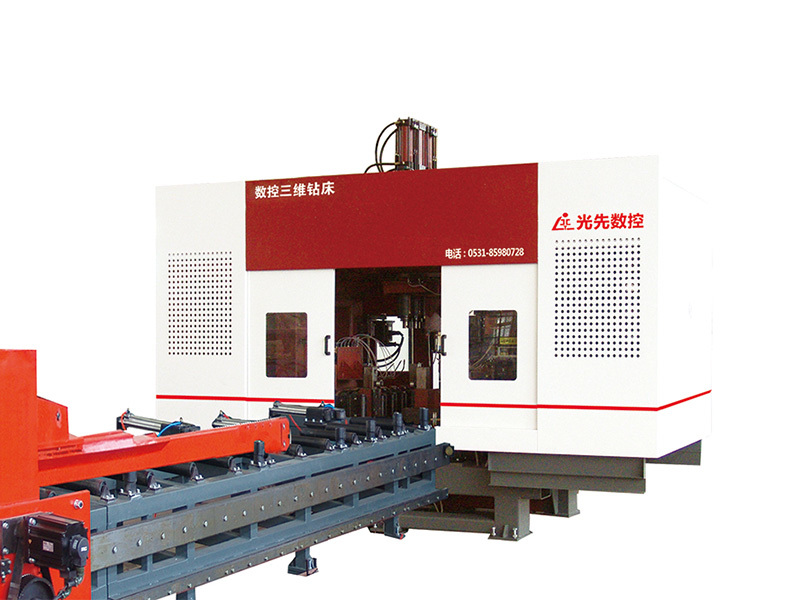

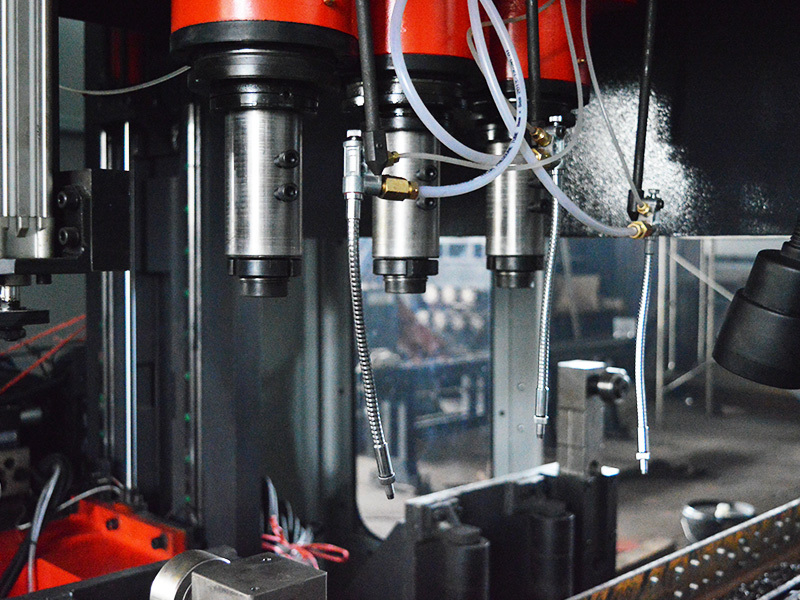

The CNC 3D drill is mainly composed of the main machine, the 3D drill feeding mechanism, the 3D drill discharge channel, the cooling system, the hydraulic system, the pneumatic system, the lubrication system, the electrical system, and the scrap car. The machine tool adopts a fixed bed structure and a movable workpiece structure. The three-dimensional drill of this structure is suitable for the processing of medium and small steel and is convenient for automatic production.

The control system of the machine tool consists of a host computer, PLC and so on. Programming method: keyboard input, USB interface input, CAD generated processing program. The processing program can be stored, recalled, displayed and communicated at any time according to the part number. The machine tool can not only realize the individual manual adjustment and control of each processing parameter, but also realize the automatic control processing of the whole process.

In order to ensure the reliability and durability of the machine tool, the linear rolling guides, servo motors, servo amplifiers, frequency converters, and hydraulic components used in this machine are all world-renowned brand products.



The main technical parameters:


Parameter name

Unit

Parameter value

Remarks

Workpiece
Parameters

Width range

mm

100~500



Height range

mm

100~500



Minimum automatic feeding length

mm

2000



Maximum length of workpiece

mm

12000



Spindle

Number of spindles

Number

9



Spindle motor power

Kw

约5.5



Speed range of each spindle

r/min

180~560



Drilling diameter range

mm

φ12~φ30



Number
Control
Shaft

X axis

Servo motor power

Kw

About 4.5



Maximum speed

m/min

40



Y axis

Servo motor power

Kw

About 1.5



Maximum speed

m/min

10



Z, W axis

Servo motor power

Kw

About 1.5



Maximum speed

m/min

10
