PZ2016 gantry mobile (high speed) CNC drilling machine
Количество просмотров :
1000

PZ2016 gantry mobile (high speed) CNC drilling machine

Розничная цена
0.0
Рыночная цена
0.0
Количество просмотров :
1000
Товарный код
Количество
-
+
Наличие на складе :
0
Описание продукта
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

1. Purpose and characteristics

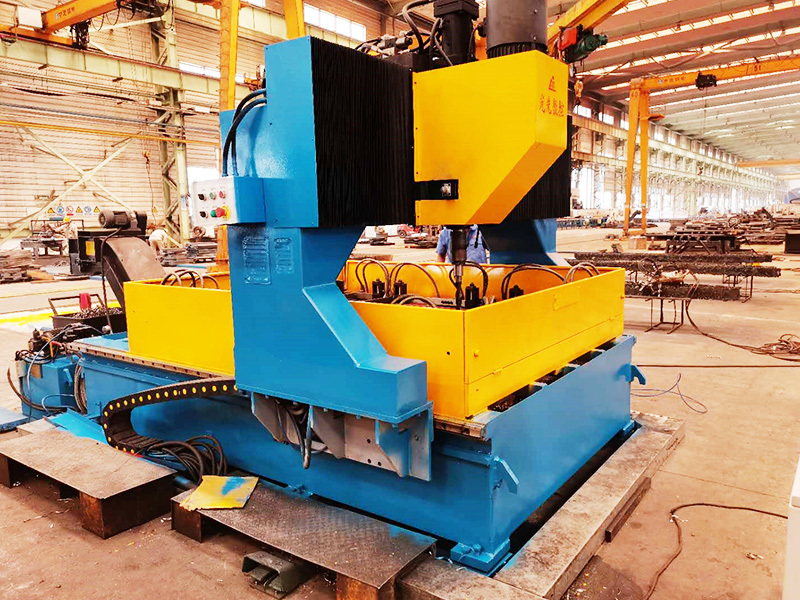

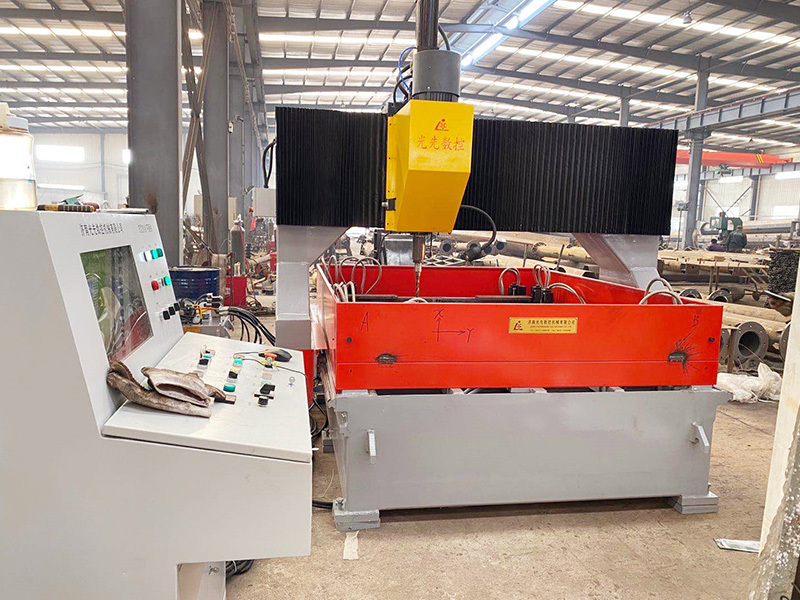

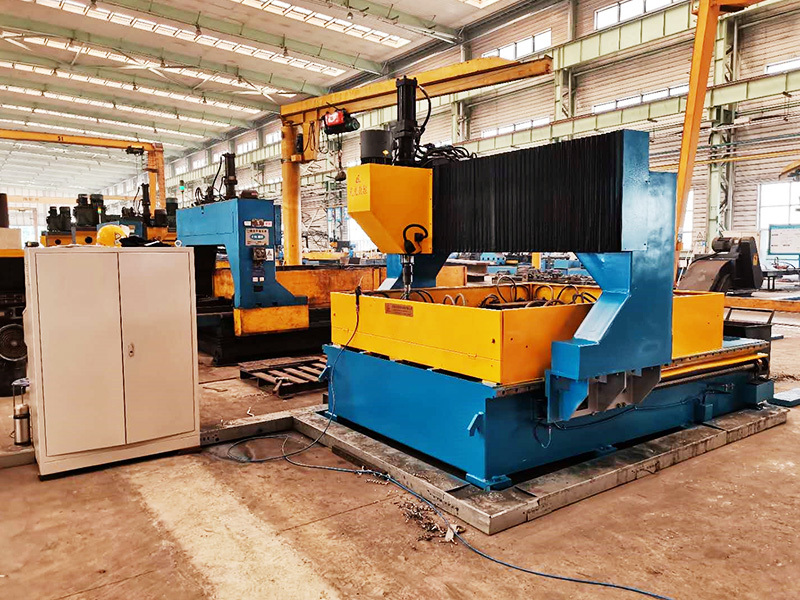

1. The equipment is mainly used for drilling and processing flat plates of construction steel structures, power towers, petrochemical equipment, etc. The equipment adopts a gantry moving structure. The longitudinal movement (X axis) and lateral movement (Y axis) are all driven by a servo motor through a precision ball screw guide. The feed is hydraulic and self-controlled stroke drilling power head. It can automatically, accurately and quickly locate and automatically complete the drilling process. It greatly improves the drilling accuracy and speed, while avoiding the possibility of repairing or scrapping the workpiece caused by manual positioning and drilling errors.

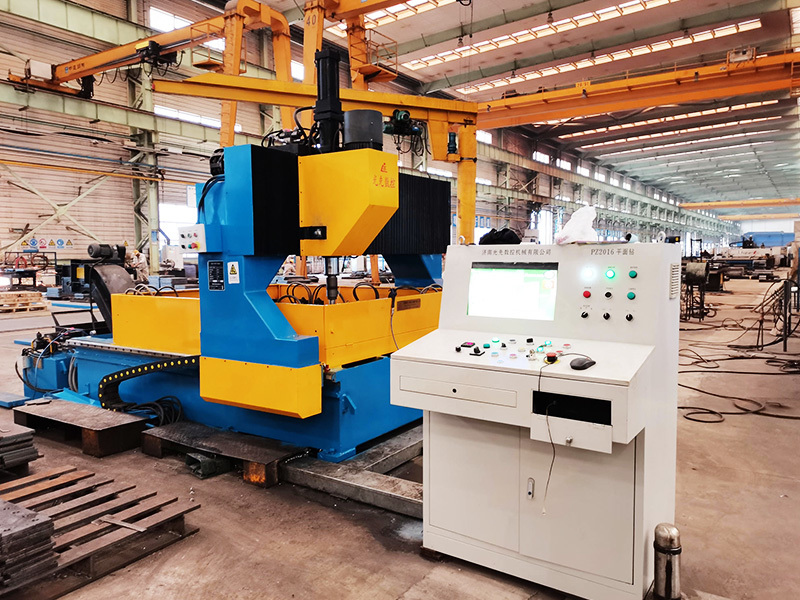

2. The machine tool control system is controlled by a host computer + PLC control system. The upper computer is equipped with automatic programming software and machine tool monitoring software, which can directly convert AUTOCAD graphics files to generate processing programs. Even manual programming is very simple and fast. Those who do not have computer operation experience can complete part programming in a short time.



2. Equipment parameters

1. Machine tool type     Gantry mobile CNC drilling machine

2. Maximum clamping workpiece size     2000×1600mm (1 piece)

3. Workpiece thickness     6~100mm (can be superimposed)

4. Number of clamping cylinders     12

5. Clamping force     7.5KN

6. Clamping opening/locking     foot switch

7. Drilling power head type     Automatic control stroke drilling power head

8. Number of drilling power head     1

9. Spindle Mode Taper     No. 4

10. Drilling diameter range     Ф10~Ф50mm

11. Spindle motor power     5.5KW

12. Spindle speed     100-560r/min (frequency conversion speed regulation)

13. Power head vertical stroke (Z axis)     180mm

14. Longmen longitudinal (X axis) movement stroke     2000mm

15. X axis servo motor power     1.5KW

16. Transverse (Y axis) movement stroke of power head     1600mm

17. Y-axis servo motor power     1.5KW

18. Number of CNC axes     2

19. Machine tool accuracy

   Positioning accuracy     ≤±0.25mm

   Repeatability     ≤±0.15mm

20. Total motor power     11KW

21. twenty one. The total weight of the machine tool is     about 6 t
