PZ series gantry mobile CNC plane drilling machine
/
PZ1610 gantry mobile CNC drilling machine
Количество просмотров :
1000

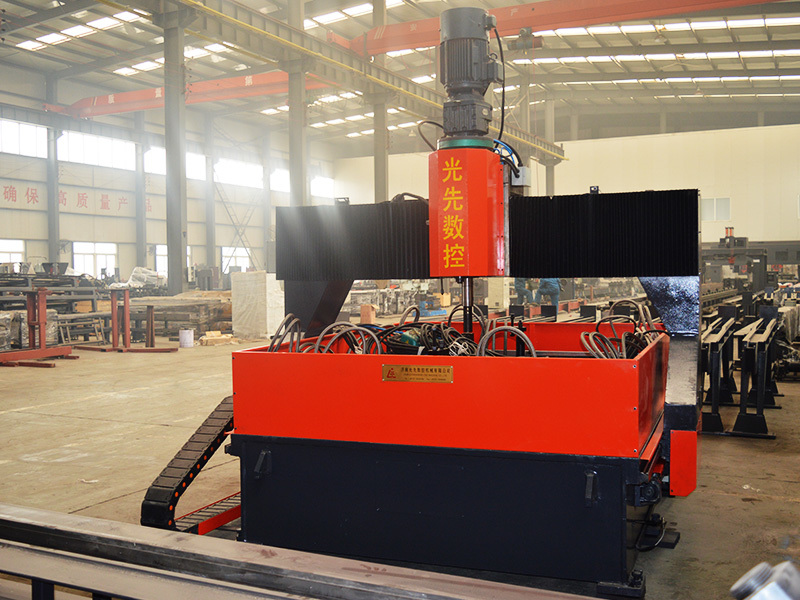

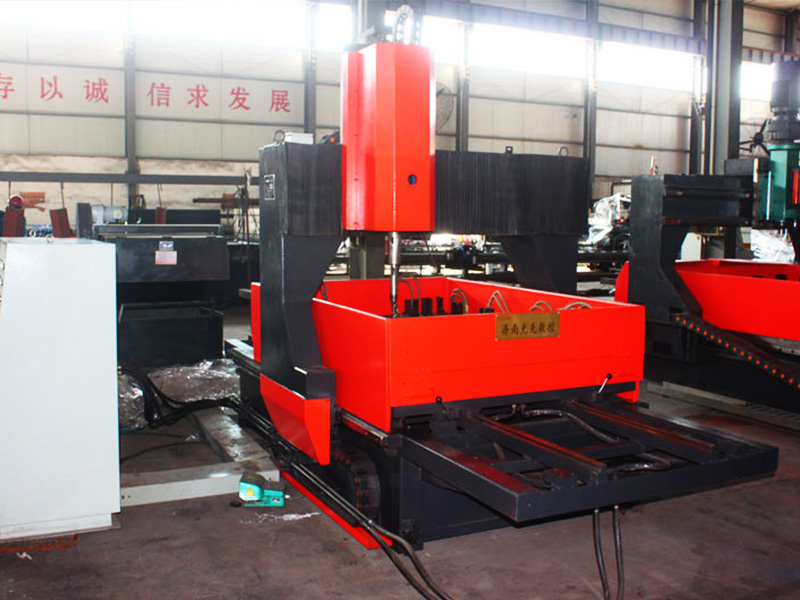

PZ1610 gantry mobile CNC drilling machine

Розничная цена
0.0
元
Рыночная цена
0.0
元
Количество просмотров :
1000
Товарный код
Количество
-
+
Наличие на складе :
0
Подкатегория
Обратно к списку
1
资质文件 服务保障
Описание продукта
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

1. Purpose and characteristics

1. The equipment is mainly used for drilling and processing flat plates of construction steel structures, power towers, petrochemical equipment, etc. The equipment adopts a gantry moving structure. The longitudinal movement (X axis) and lateral movement (Y axis) are all driven by a servo motor through a precision ball screw guide. The drilling feed (Z axis) is hydraulic. It can automatically, accurately and quickly locate and automatically complete the drilling process. Greatly improve the drilling accuracy and speed. At the same time, the possibility of repairing or scrapping the workpiece caused by manual positioning and drilling errors is avoided.

2. The machine tool control system adopts the upper computer + PLC numerical control system control. The upper computer is equipped with automatic programming software and machine tool monitoring software, which can directly convert AUTOCAD graphics files to generate processing programs. Even manual programming is very simple and fast. Those who do not have computer operation experience can complete part programming in a short time.

2. Equipment parameters

1. Machine tool type    Gantry mobile CNC drilling machine

2. Maximum clamping workpiece size    1600×1000mm (1 piece)

3. Workpiece thickness    6~80mm

4. Drilling power head type    Automatic control stroke drilling power head

5. Number of drilling power head    1

6. Spindle Mode Taper    No. 4

7. Drill bit loading and unloading mode    Quick change chuck

8. Maximum drilling diameter   Ф50mm

9. Spindle motor power    5.5KW

10. Spindle speed     100-560r/min (frequency conversion speed regulation)

11. Power head vertical stroke (Z axis)    180mm

12. Longmen longitudinal (X axis) travel stroke    1600mm

13. X axis servo motor power    1.5KW

14. Power head transverse (Y axis) travel stroke    1000mm

15. Y-axis servo motor power    1.5KW

16. Number of CNC axes    2

17. Machine tool accuracy

　　 positioning accuracy    ≤±0.20mm

　　 Repeatability    ≤±0.10mm

18. Total motor power    11KW

19. The total weight of the machine tool is    about 5.2 t
