JGZ500 CNC H-shaped hacksaw cutting and drilling production line

Розничная цена
0.0
Рыночная цена
0.0
Количество просмотров :
1000
Товарный код
Количество
-
+
Наличие на складе :
0
Описание продукта
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

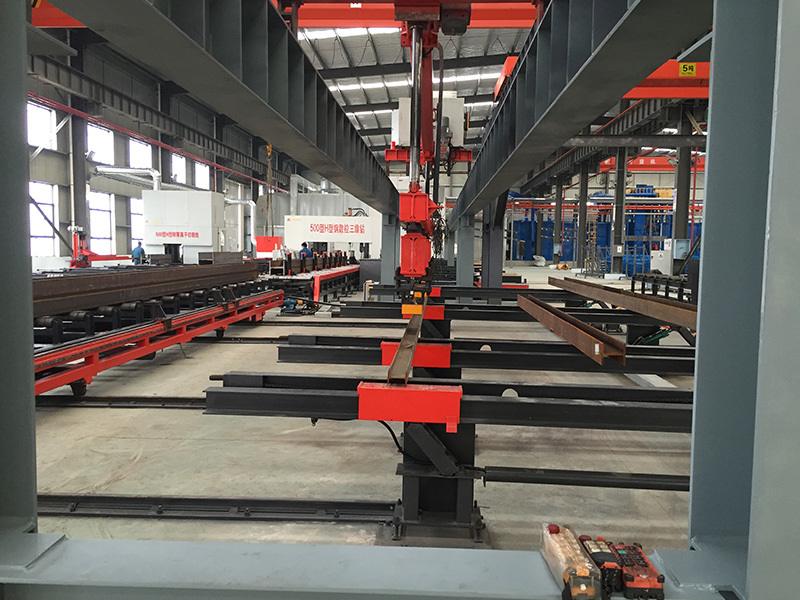

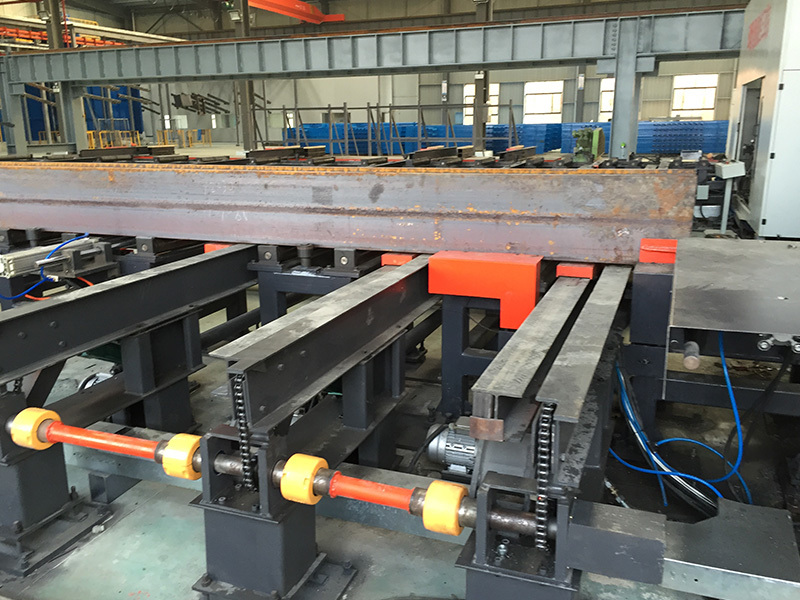

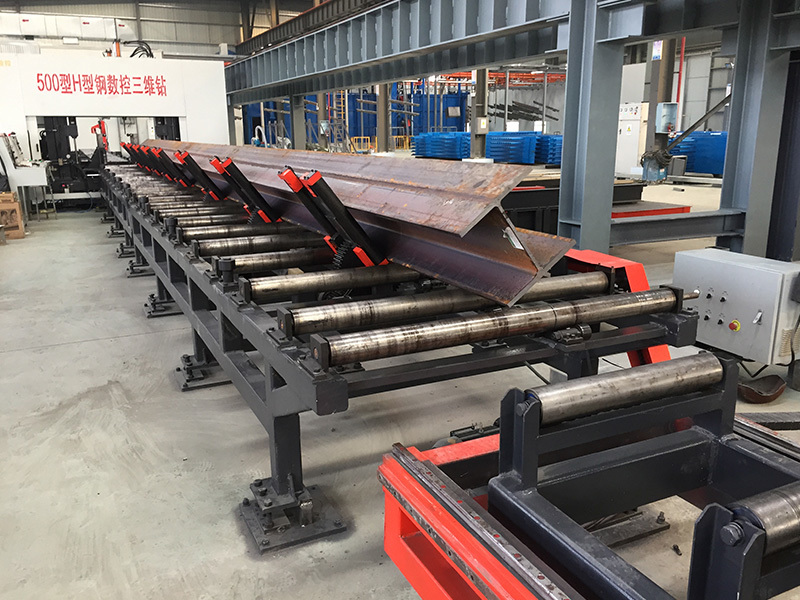

JGZ500 H-shaped steel sawing and drilling production line is mainly used for sawing, drilling and cutting of H-shaped steel, channel steel and other steel. It has the characteristics of high processing efficiency, high precision, high automation, convenient operation and wide applicability. It is mainly used for the processing of three-dimensional garage steel structure, and it is also widely used in construction, bridges, tower masts and grids and other industries. The JGZ500 CNC combined production line is composed of a sawing production line and a CNC three-dimensional drilling machine (including plasma cutting). The control system of the production line is composed of touch screen and PLC. In order to ensure the reliability and durability of the equipment, the servo motors and servo amplifiers used in this equipment are all world-renowned brand products.



The main technical parameters:




Parameter name

Unit

Parameter value

Remarks

Workpiece
Parameters

Width range

mm

100~500



Height range

mm

100~500



Maximum feed length

mm

9000



Minimum feed length

mm

5000



Maximum speed of CNC feeding device

m/min

40
