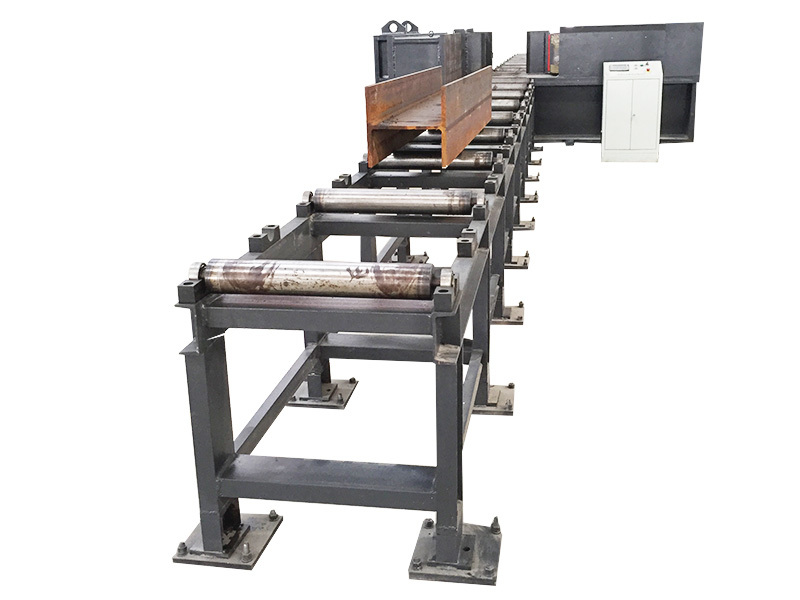

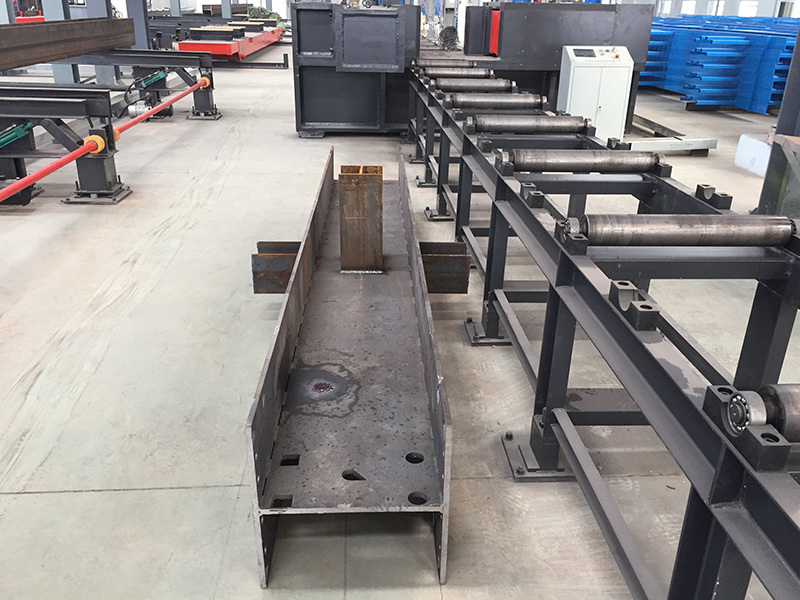

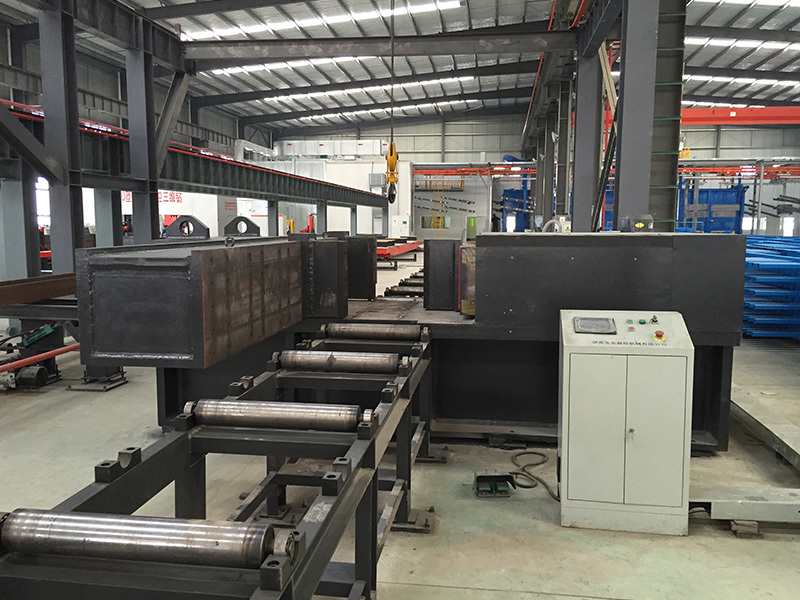

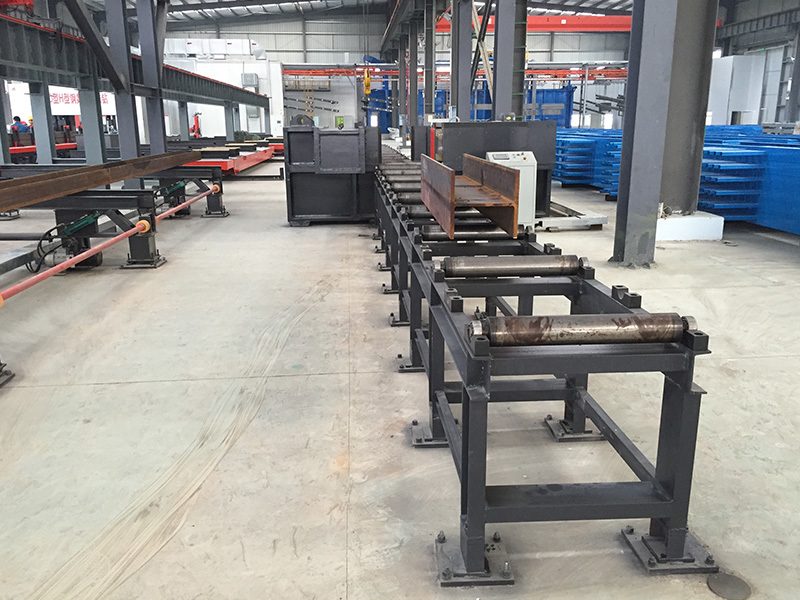

Xwk25 type CNC section steel straightening machine

The equipment has been granted the national invention patent No.: 201521027216.3

This machine is used for straightening bending angle steel and section steel. Numerical control, convenient operation.



Straightening machine is composed of body, straightening hydraulic cylinder and straightening die.

During straightening, different straightening dies shall be replaced according to different specifications of angle steel and section steel.

When straightening, the angle steel and section steel to be straightened are placed on the straightening die, and the hydraulic cylinder is controlled by numerical control to straighten



Nominal force(kN)

2500

Lengt of worktableh (mm)

1580

Width of worktable(mm)

560

Stroke times without loading(min-1)

≧16

throat depth(mm)

300

Slide stroke(mm)

300

Maximum opening height between table and sliding(mm)

680

Slider stroke adjustment(mm)

160

Working pressure of hydraulic system(mpa)

25

Motor power(kw)

15

  Motor speed (r / min)

1450

Overall dimension (mm)

1500X2780X1500

Machine quality(kg)

12000
