CB25 CNC angle steel backhoe
Розничная цена
0.0
元
Рыночная цена
0.0
元
Количество просмотров :
1000
Товарный код
Количество
-
+
Наличие на складе :
0
Описание продукта
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

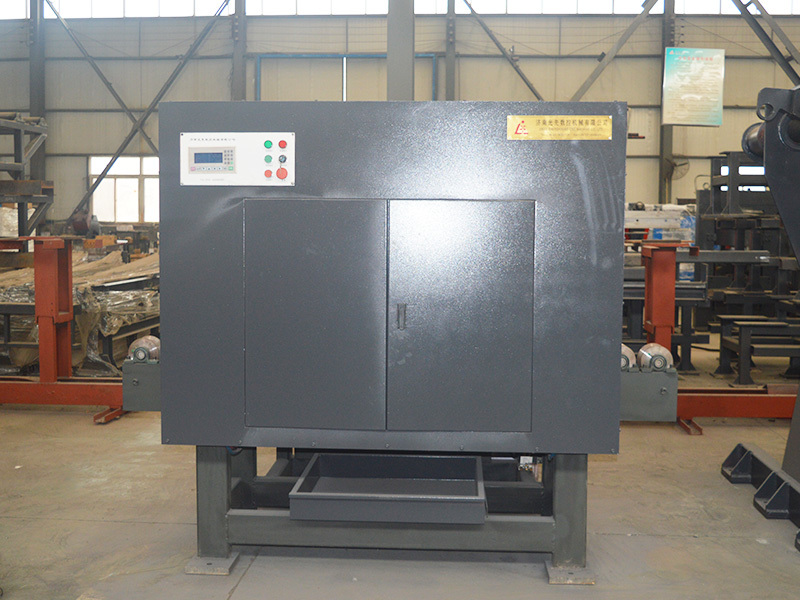

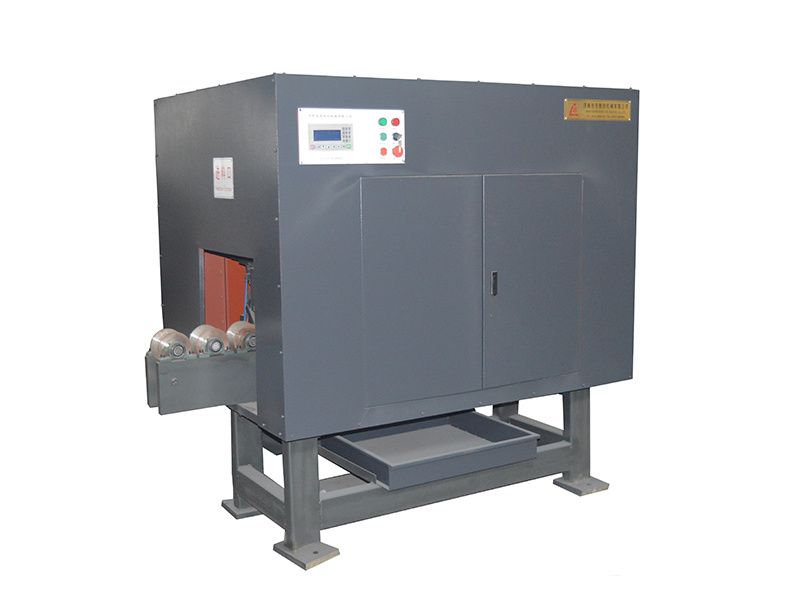

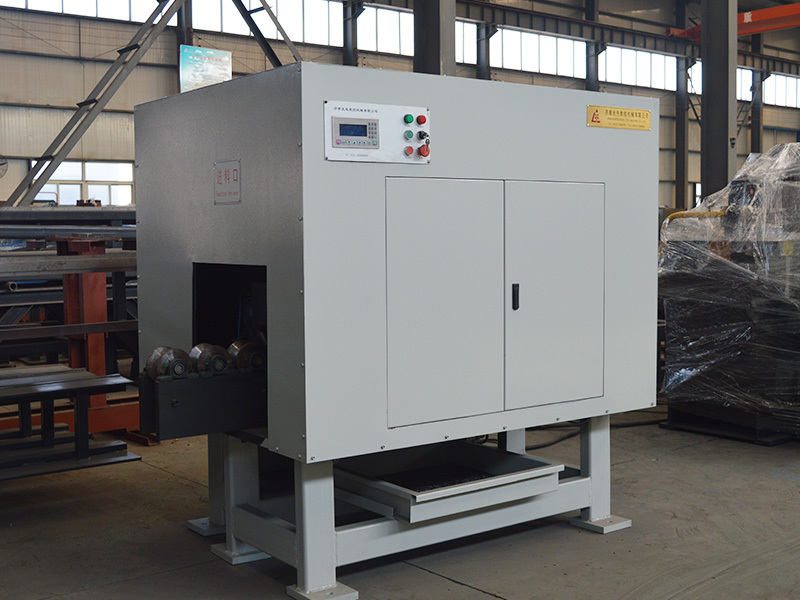

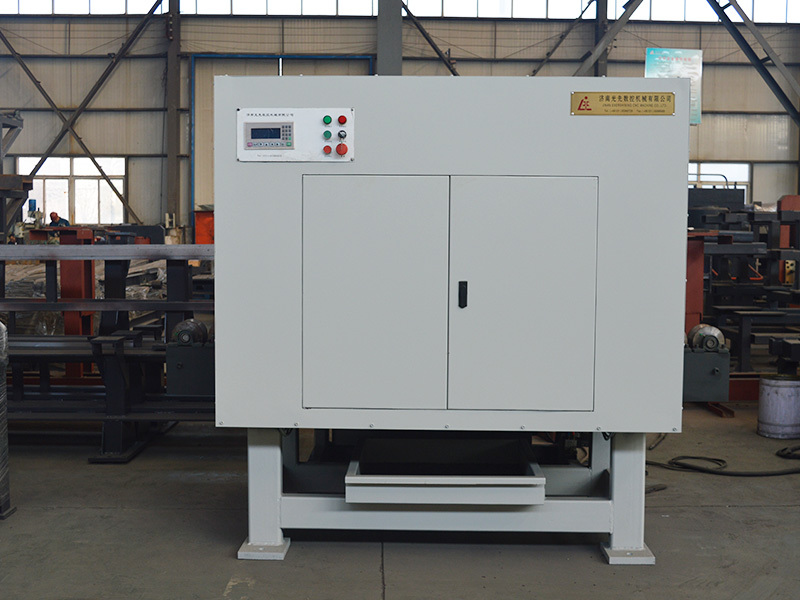

CB25 CNC angle steel backhoe
Using the principle of milling, the machining speed is fast, the efficiency is high, and the surface flatness of the workpiece is good.
The equipment is easy to operate and reduces the operation requirements for workers;
With high automation, can realize the continuous / single section feeding, effectively improves the work efficiency;
Compared with the traditional planer processing technology, the machine overcomes the problems of limited processing length and complicated clamping. The processing length is free and unlimited, and the workpiece does not need clamping device, which makes the processing more convenient and fast, reduces the labor intensity of workers and greatly improves the production efficiency;
The equipment is easy to operate, flexible in adjustment and stable in operation.
|
Machine model |
CB25 |
|
Processing angle steel size range (mm) |
L63×63×4~L250×250×35 |
|
Power requirements |
3-phase 4-wire 380V, 50 Hz |
|
Total power of equipment(kw) |
12 |
|
Air source requirements |
0.6~0.8MPa |
|
Single spindle power(kw) |
5.5 |
|
Cutting speed（min-1） |
360 |
|
Cutter head diameter(mm) |
120 |
|
Feed rate(mm) |
0~450 |
|
Number of spindles |
2 |
|
Number of feeding motors |
2 |
|
Number of pressing cylinders |
4 |
|
nominal pressure |
800 |
