BNC100 CNC connecting plate punching marking machine

Розничная цена
0.0
Рыночная цена
0.0
Количество просмотров :
1000
Товарный код
Количество
-
+
Наличие на складе :
0
Описание продукта
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

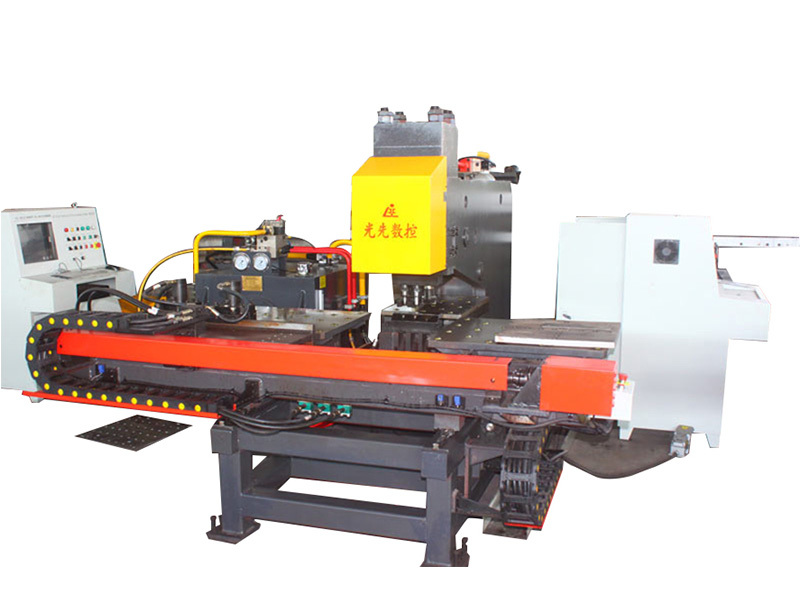

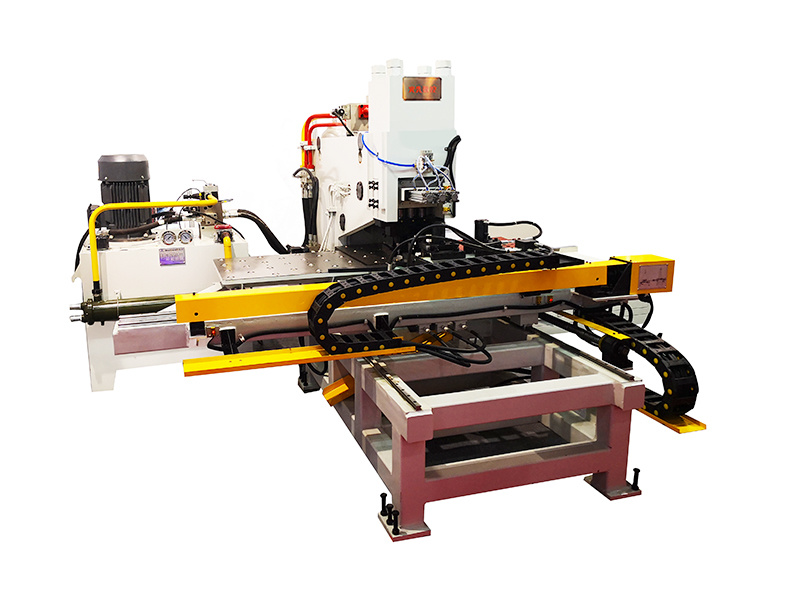

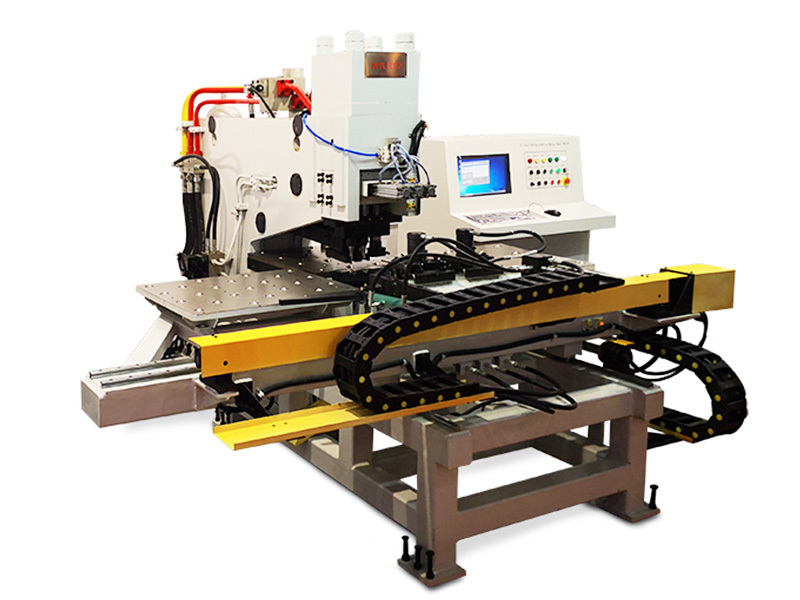

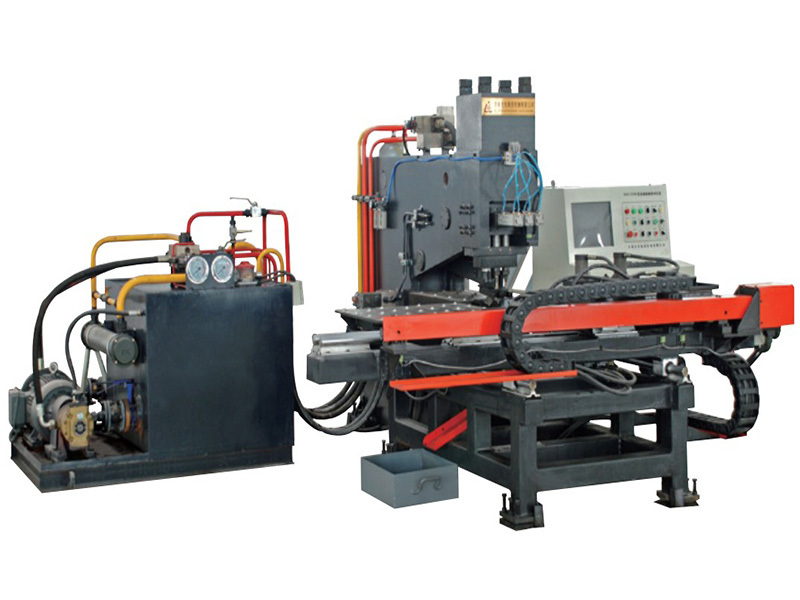

BNC100 CNC connecting plate punching  marking machine

The product has obtained a number of national patents with patent numbers of 2015 2 1014818.5  2015 2 0948896.6  2013 2 0434794.3 etc

This machine is used for punching  and marking process of metal plate, and it is a special numerical control equipment for automatic production.

The frame is C-type steel plate welding structure with good rigidity and large operation space. This machine is equipped with three die stations (one of which is a marking station), and the mode position switching is carried out automatically. The clamp system can be used for workpieces of different thicknesses, with a reference zero stop, and the workpiece is supported by a ball rolling table. The x-axis and y-axis are driven by servo motor and ball screw, and the punching position is controlled by two axis CNC system. The whole machining process is carried out automatically. The operator inputs the workpiece size into the computer, which can be called repeatedly later.

Adopting numerical control technology, servo motor feeding, high efficiency and stable workpiece precision

The guide of punching slide is long, which improves the service life of punch rod and punching die

Punching, marking and drilling can be realized on the same board.



The drilling unit has the functions of empty stroke fast forward, slow feeding and fast returning, which improves the work efficiency.

It is easy to program. The operator can input hole diameter, position and workpiece number. The operator can also use the program generated by lofting software or convert it directly by CAD / CAM.

It has the function of fault self diagnosi





  Machine model

BNC100

Max. workpiece size (mm)

1500×800

Max. workpiece size (mm)

φ26×25(Material Q345 510N/mm²)

Thickness of punching plate(mm)

5~25

Max. drilling hole diameter(mm)

-

Max. drilling plate thickness(mm)

-

Punching force (KN)

1000

Marking force(KN)

800

The min. distance from the hole to the plate edge(mm)

25

 character head size (mm)

14×10×19(depends on customer requirements)

Number of characters

12

Module number

3

The machining accuracy

meets the requirements of GB2694

Programmatically

Programming mode: keyboard input, USB interface input, CAD conversion

Overall dimension (mm)

3200×3000×1900
